Water Oil Standard Port 1/2'' Brass FIP Gas Ball Valve

Product Categories

Taizhou JinQuan Copper Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Water Oil Standard Port 1/2'' Brass FIP Gas Ball Valve

Brand Name : JQ

Model Number : JQ-1/2

Certification : cUPC NSF

Place of Origin : China (Mainland)

MOQ : Negotiate

Price : negotiate

Payment Terms : T/T

Delivery Time : 45 Days

Product name : FIP Gas Ball Valve

Port size : 1/2'' FIP Ball Valve Lead Free

Material : Brass

Power : Manual

Pressure : Medium Pressure

Media : Water Oil

Standard or nonstandard : Standard

Body material : Brass

Color : brass color

Surface treatment : Nature brass color

Contact Now

Water Oil Standard Port 1/2'' FIP Gas Ball Valve

FIP Gas Ball Valve Advantages:

1. 100% pieces leaking tight test before shipment.

2. High dimensional accuracy.

3. Forged brass body & bonnet; Brass flap & nut.

4. Annealing treatment body & bonnet to avoid crack risky, to guarantee the long durable lifetime and safe use.

5. Easy installation.

6.Suitable to be used with high pressure application

FIP Gas Ball Valve Parameters

Name	PEX Ball Valve w/Drain
Body	CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR,as per request
Norminal Diameter	DN15-DN50, can be customized
Norminal Pressure	600PSI
Working Medium	Water, Non-causticity liquid, Saturated steam
Working Temperature	-28℃~148℃
Thread	ISO228/1, BSP, NPT, etc

FIP Gas Ball Valve Advantage

Fast Material Supply. Have own copper bar Factory of Group.
Every valve put through a six-step QC process before delivery.
On-time Delivery.
Complete R&D facilities and Excellent team.
Annual R&D projects reach the number of 100.
Have rich experience and strong ability to develop new product

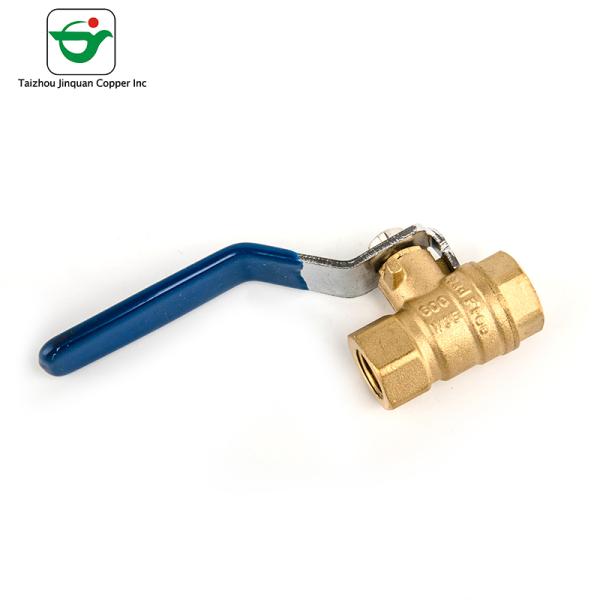

FIP Gas Ball Valve Pictures

Water Oil Standard Port 1/2'' Brass FIP Gas Ball Valve

FIP Gas Ball Valve Details

Water Oil Standard Port 1/2'' Brass FIP Gas Ball Valve
